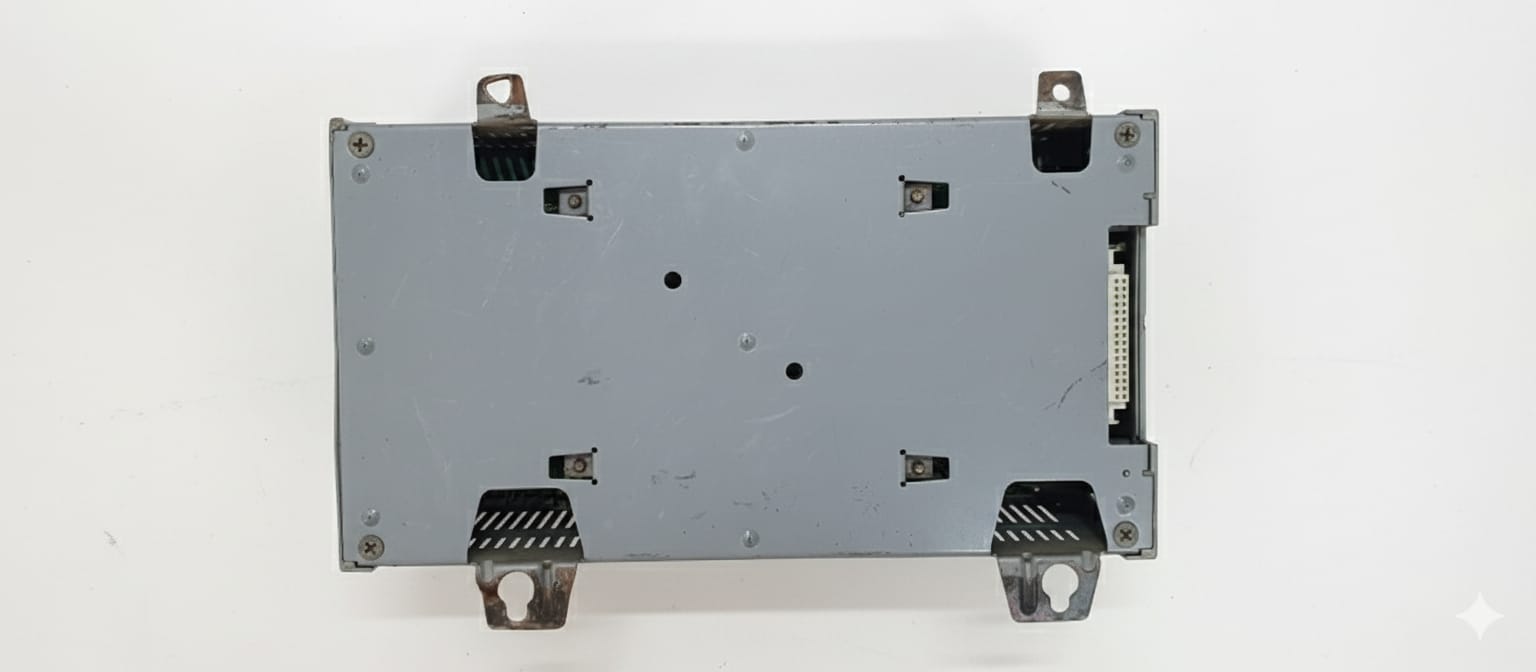

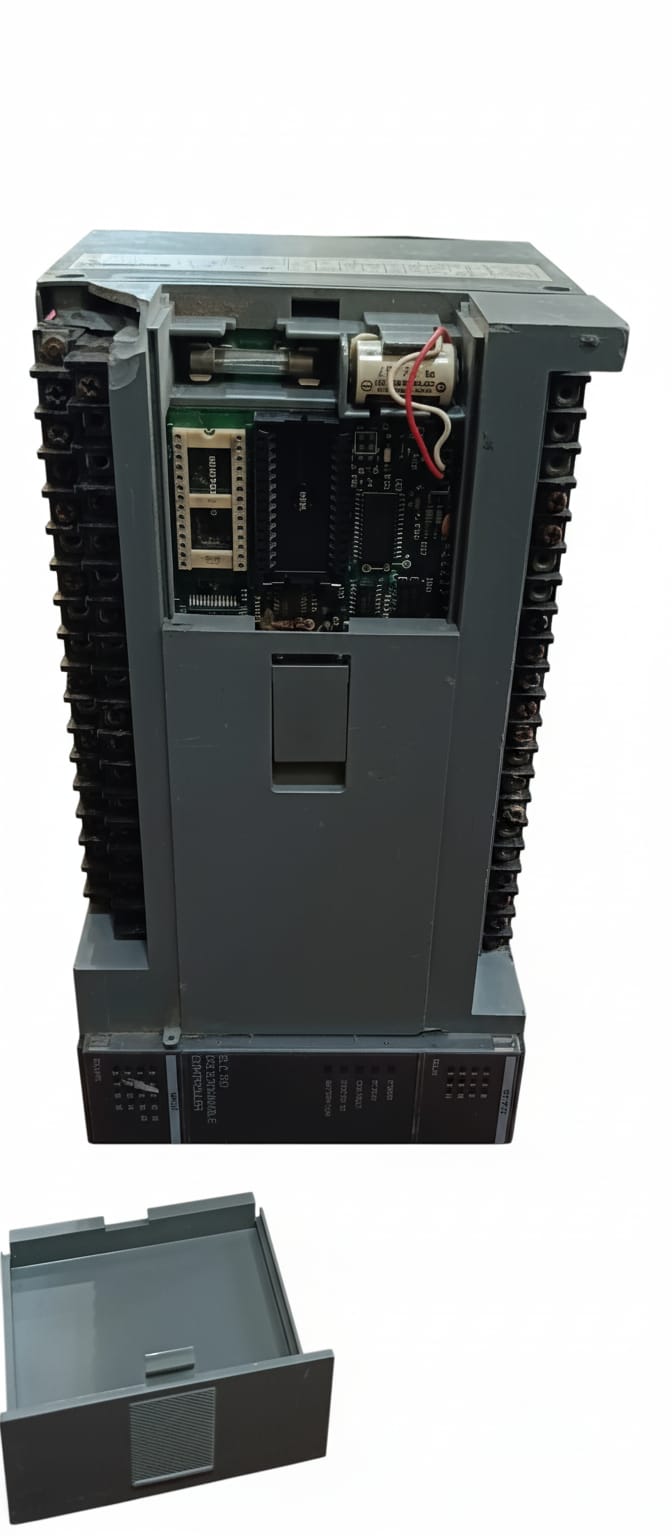

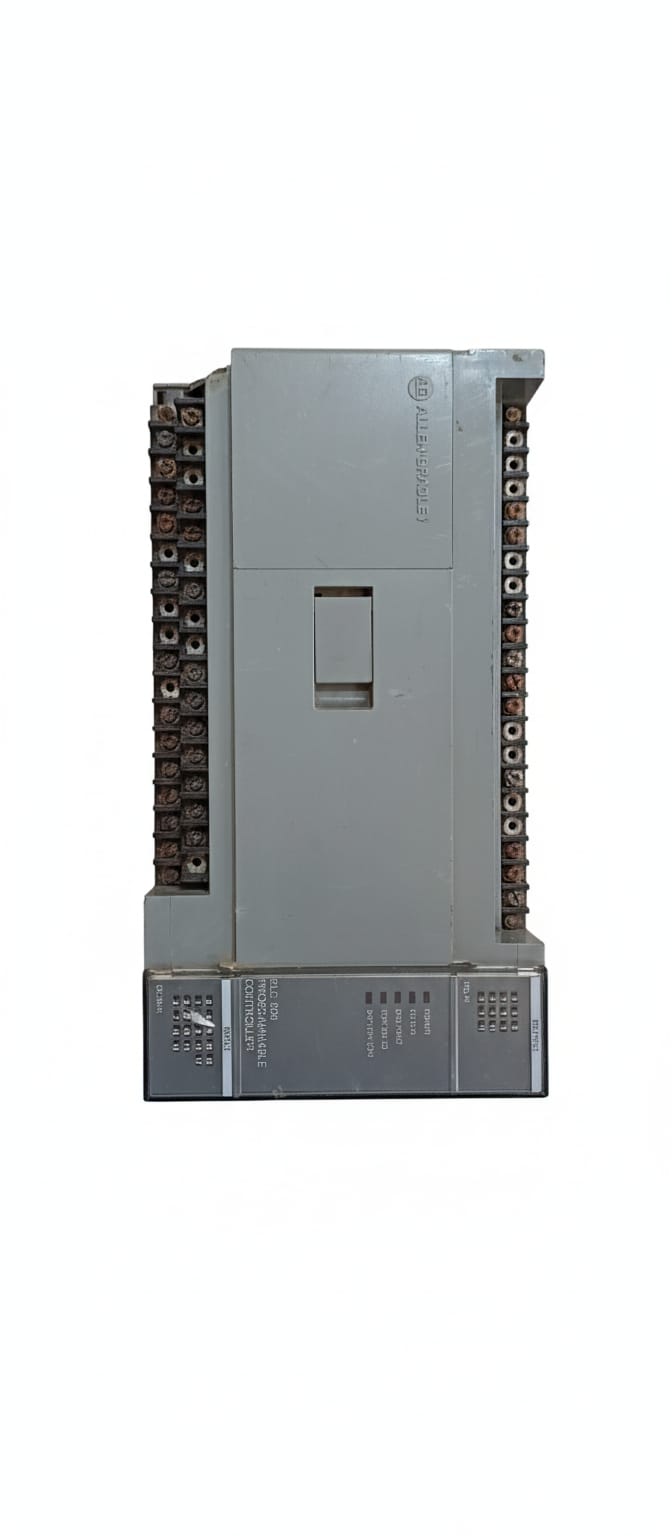

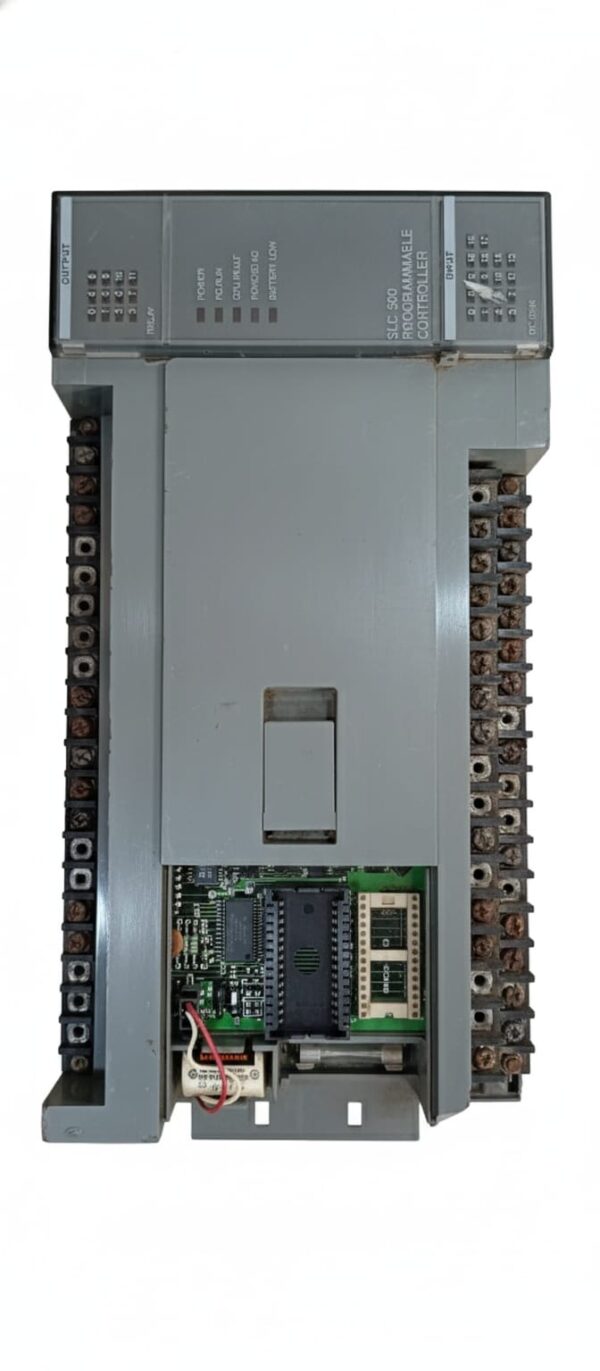

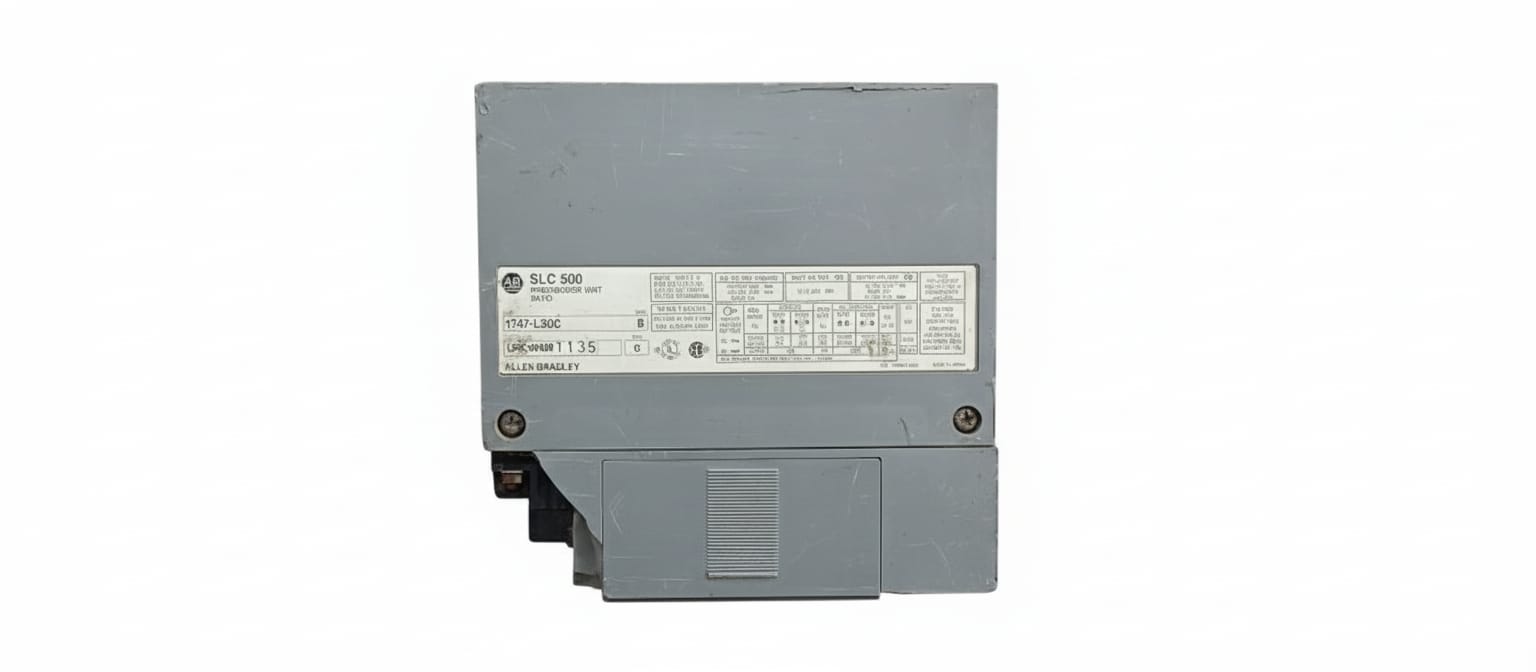

ALLEN BRADLEY 1747-L30C SER.B SLC 500 Programmable Controller Processor MODULE

Description

ConditionUsedSeller Notes“BODY LITTLE BROKEN,KINDLY REFER PHOTOS”BrandAllen-BradleyTypePLC Processor ModuleModel1747 L30CMPN1747L30CController PlatformSLC 500Country/Region of ManufactureJapanUPCDOES NOT APPLYCategorybreadcrumb

• 1747-L30C is an Allen-Bradley fixed style controller. This controller is ideal for use in small scale applications. It has integrated IOs such as (18) 24 Volts DC Sinking, High-Speed inputs and (12) AC/DC Relay.
  Fixed style hardware are cost effective – products with limited expansion capability. The modules that can be installed with this fixed style hardware are standard SLC 500 modules such as input and output modules. Specialty and Intelligent modules when used with this fixed style controller are installed in the 2nd slot or slot no. 1. The main difference of 1747-L30C with 1747-L30A is the embedded capability of receiving High-Speed inputs. It functions similarly with the 1747-L30A.
  This SLC controller may be used with a Data Access Table Module (DTAM), configured and programmed with the use of a Handheld Terminal or 1747-PT1, Isolated link coupler such as 1747-AIC and advanced coupler like 1747-NET-AIC.
  This product is announced discontinued on July 31, 2009. Appropriate replacement for this controller includes MicroLogix or CompactLogix controllers.
  Though this SCL fixed style controller is designed for small application, it is capable of being communicated with Supervisory Control and Data Acquisition (SCADA) and Human Machine Interface (HMI) system and devices. It may also be used for exchanging data with PLC 5 controllers provided an appropriate communication module via the 1747-DCM. Specifically, PLC 5/15 or PLC 5/25 may be communicated with SLC 5/01, 5/02 and 5/03. If direct communication with SLC controllers is used, the host controller may be installed with a 1747-SN while the client controller is installed with a 1747-DCM.
